| Class 150 Globe Valve 截止閥 |
| 產(chǎn)品類別：美標閥系列 |
|
|
技術要求：
設計和制造：ANSI B16.34、BS1873
結構長度：ANSI B16.10
法蘭連接：ANSI B16.5
試驗和驗收：API 598 |
|

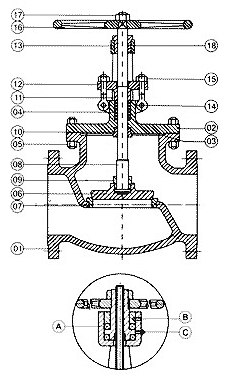

材料 Material
|
|
|
零件名稱
|
材料
|
|
18
|
緊定螺釘
|
Carbon Steel
|
|
17
|
手輪鎖緊螺釘
|
Carbon Steel
|
|
16
|
手輪
|
Carbon Steel
|
|
15
|
活節(jié)螺栓/螺母
|
A193 B7/A194 4,A193 B8/A194 8
|
|
14
|
銷
|
Carbon Steel/SS
|
|
13
|
閥桿螺母/螺母
|
A439 D2/Cu-Alloy
|
|
12
|
填料壓蓋
|
Carbon Steel
|
|
11
|
填料壓套
|
Stainless steel
|
|
10
|
上密封套
|
Stainless steel
|
|
09
|
卡套
|
CS+SS/SS/SS+STL
|
|
08
|
閥桿
|
Stainless steel
|
|
07
|
閥座
|
Carbon steel+SS/SS/SS+STL
|
|
06
|
閥瓣
|
Carbon steel+SS/SS/SS+STL
|
|
|
零件名稱
|
WCB
|
LCB
|
WC6
|
WC9
|
|
05
|
螺栓螺母
|
A193 Gr B7/A 194 Gr2H
|
A320 Gr L7/A 194 Gr4
|
A 193 Gr B16/A194 Gr4/7
|
A193 Gr B16/A194 Gr 4/7
|
|
04
|
填料
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
03
|
墊片
|
Spiral Wound/Soft lron
|
Spiral Wound /Soft lron
|
Spiral Wound/SS304
|
Spiral Wound/SS304
|
|
02
|
閥蓋
|
A216 Gr WCB
|
A352 Gr LCB
|
A217 Gr WC6
|
A217 Gr WC9
|
|
01
|
閥體
|
A216 Gr WCB
|
A352 Gr LCB
|
A217 Gr WC6
|
A217 Gr WC9
|
|
|
零件名稱
|
C5
|
C12
|
CF8
|
CF8M
|
|
05
|
螺栓螺母
|
A193 Gr B6/A 194 Gr4/7
|
A193 Gr B16/A 194 Gr4/7
|
A193 Gr B16/A194 Gr 4/7
|
A193 Gr B7/A194 Gr 2H
|
|
04
|
填料
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
03
|
墊片
|
Spiral Wound/Soft lron
|
Spiral Wound /Soft lron
|
Spiral Wound/SS304
|
Spiral Wound/SS316
|
|
02
|
閥蓋
|
A217 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
01
|
閥體
|
A217 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
Dimensions
|
|
Class 150
|
|
Size
|
inch
|
2
|
21/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
|
L,L1-RF,BW
|
mm
|
203
|
216
|
241
|
292
|
356
|
406
|
495
|
622
|
698
|
787
|
914
|
978
|
|
L2-RTJ
|
mm
|
216
|
229
|
254
|
305
|
368
|
419
|
508
|
635
|
711
|
800
|
927
|
991
|
|
H
|
mm
|
330
|
390
|
410
|
475
|
540
|
585
|
725
|
825
|
940
|
1200
|
1270
|
1300
|
|
K
|
mm
|
200
|
250
|
250
|
300
|
350
|
350
|
450
|
500
|
600
|
600
|
650
|
650
|
|
Wt
|
kg
|
23
|
29
|
40
|
59
|
95
|
115
|
178
|
268
|
385
|
540
|
760
|
1050
|
|
|
|
|
